Phantom case layout

Posted: 2013-11-28

This is based on the Clas Ohlson case - the largest - code 40-8470

The wavy foam you have to cut. In the lower part the layers are pre-scored and can just be pushed out in blocks. I found I had to glue the wavy layer down when done.

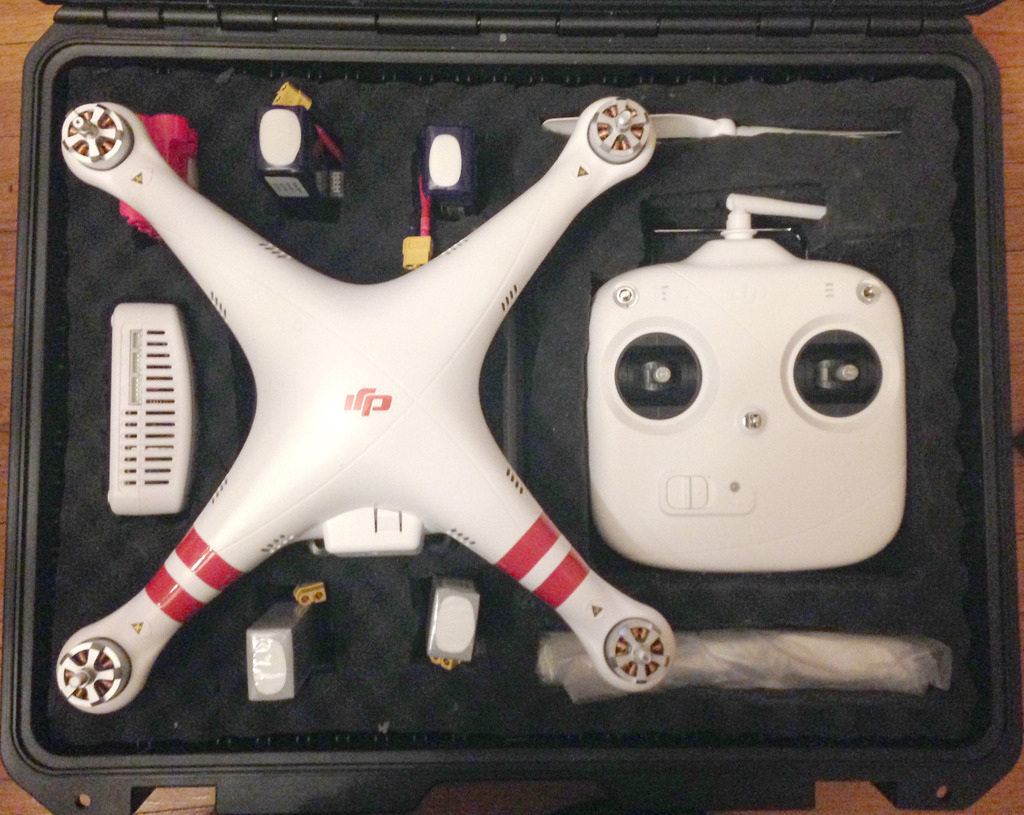

General layout

General layout of the case
General layout of the case

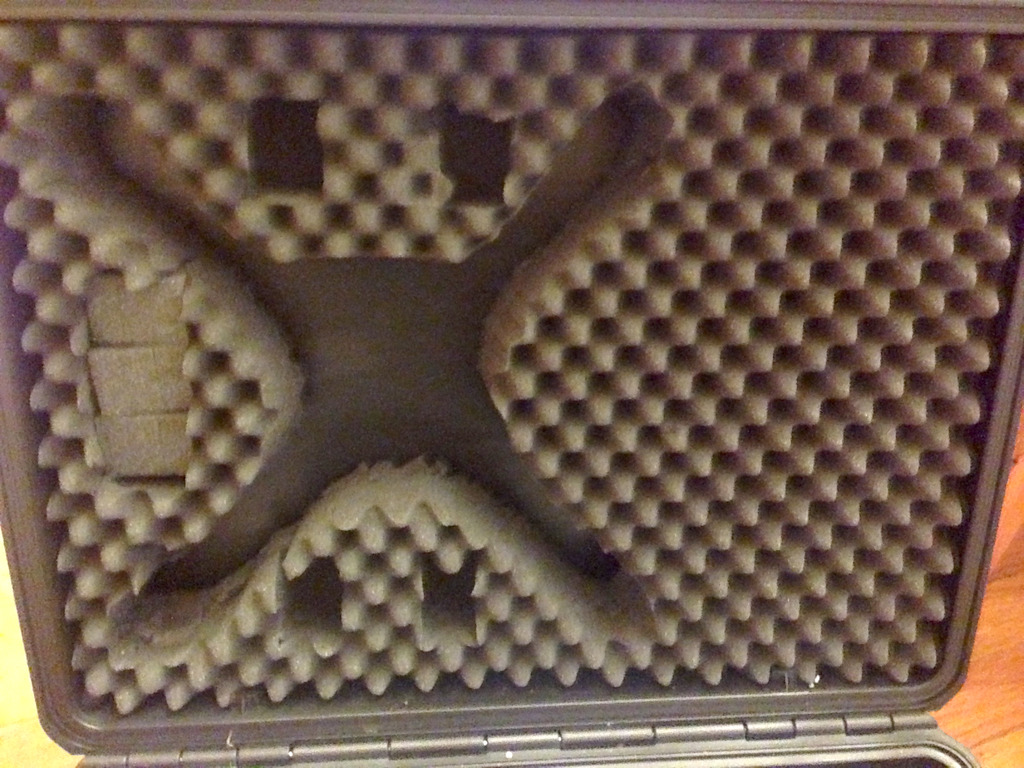

Top

Inside the top lid
Inside the top lid

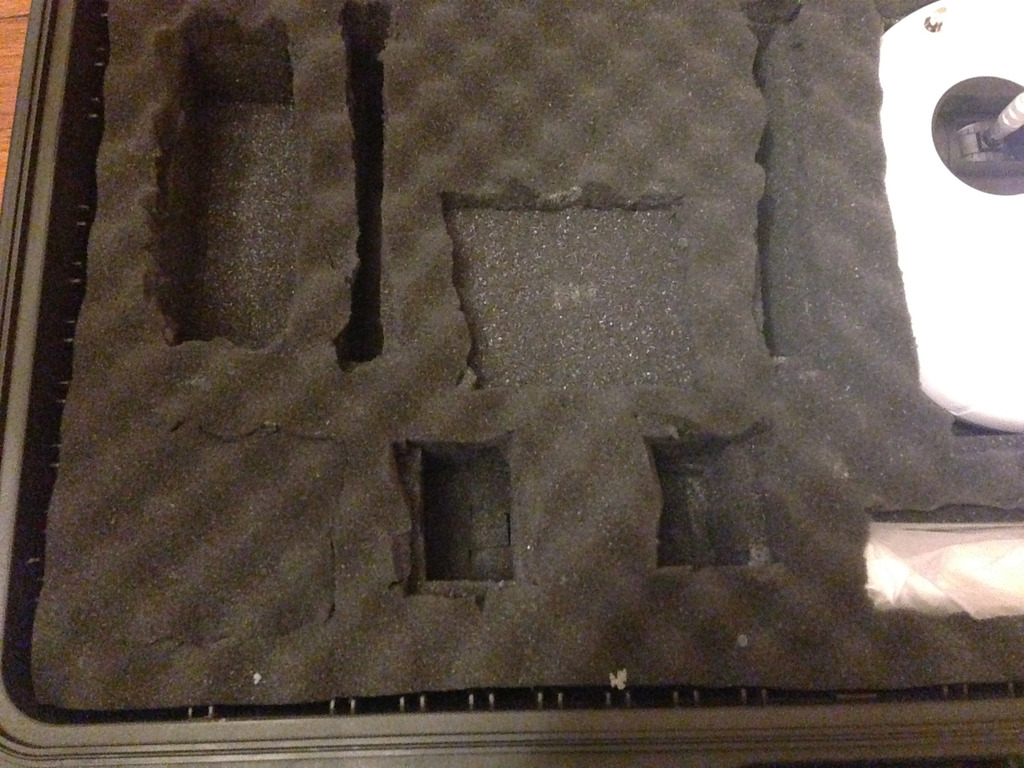

Lower left showing charger slot, leg slots, cut out for gopro mount and two battery slots. Also a small covered section (see next but one pic). Note that I put the batteries in cables down when charged and cables up when used.

Lower left showing slots
Lower left showing slots

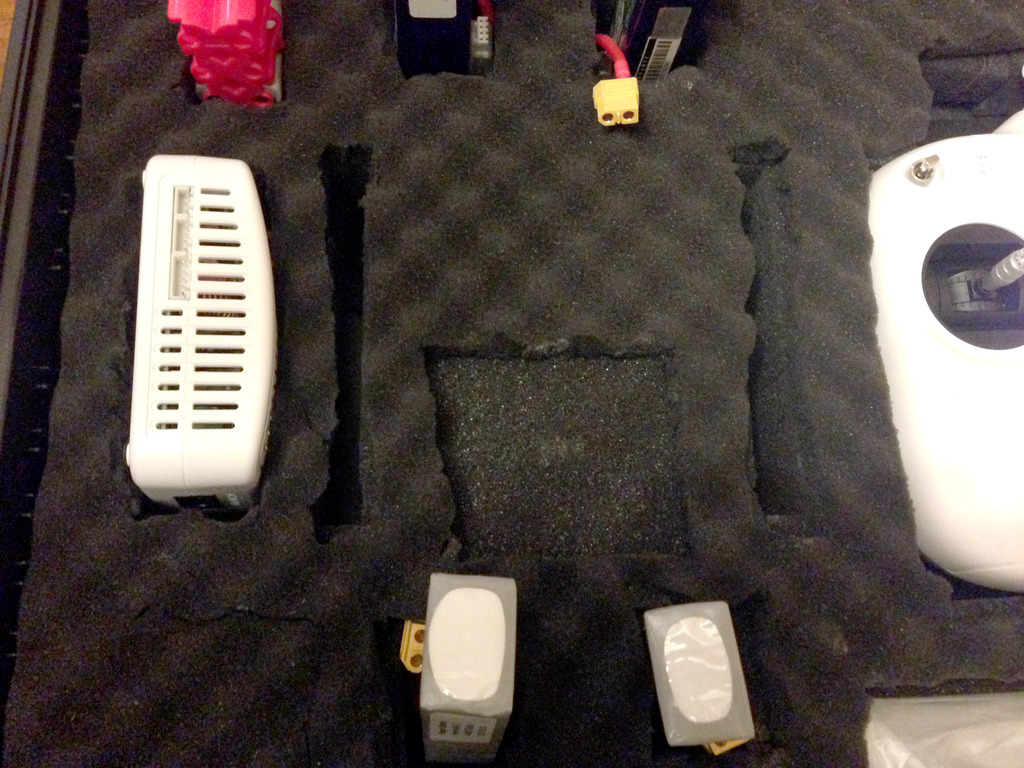

Part-loaded it looks like:

Lower left with some gear in it
Lower left with some gear in it

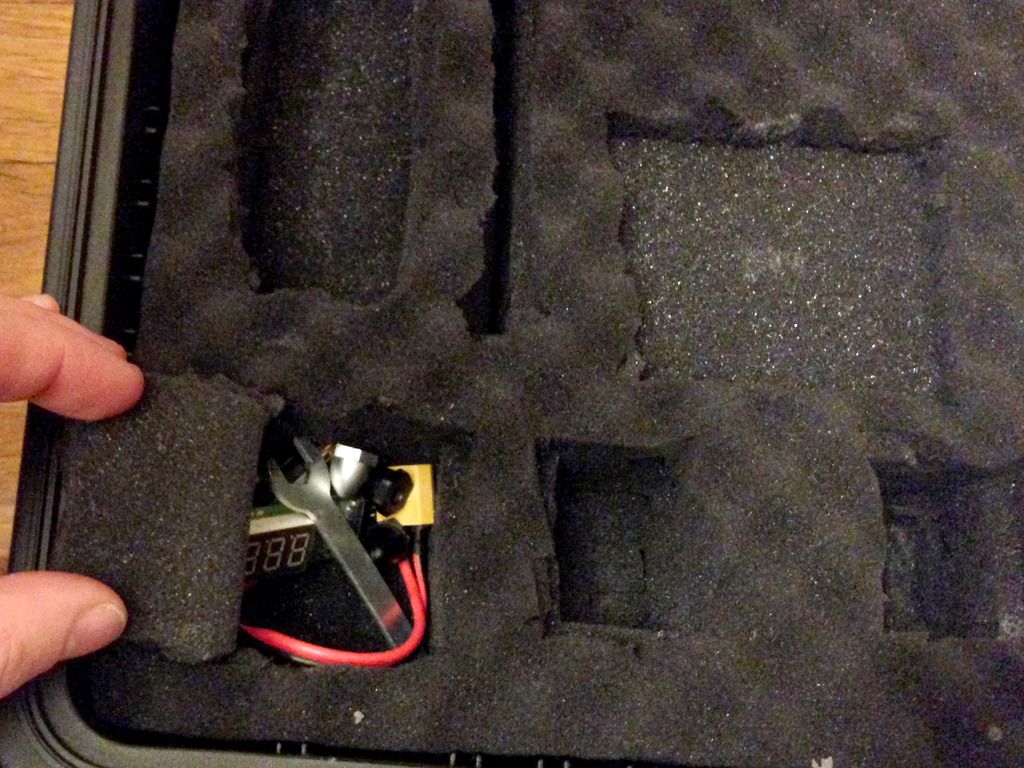

Close up showing the covered area:

Lower left - flap lifted
Lower left - flap lifted

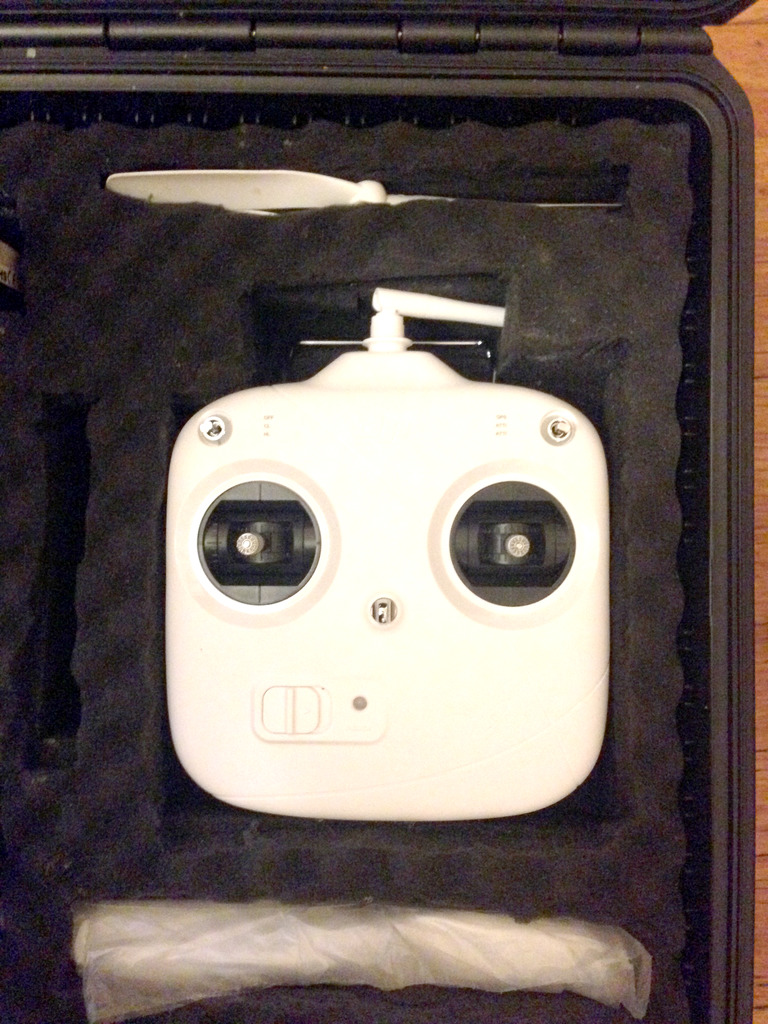

Case right showing two propeller areas and the radio. Note that the radio should really be the other way round with the antenna towards the front - as it is now it looks natural but when you close the case and lift it the antenna is pointed downwards. This has the effect of pushing it into the foam between it and the propellers and lifting the foam:

Right of the case showing radio and propellers
Right of the case showing radio and propellers
